Name: Stycast 2850FT/Catalyst 9
SKU: STYCAST
Price: 75.00 USD
Availability: OutOfStock

Stycast 2850FT/Catalyst 9

Out of stock

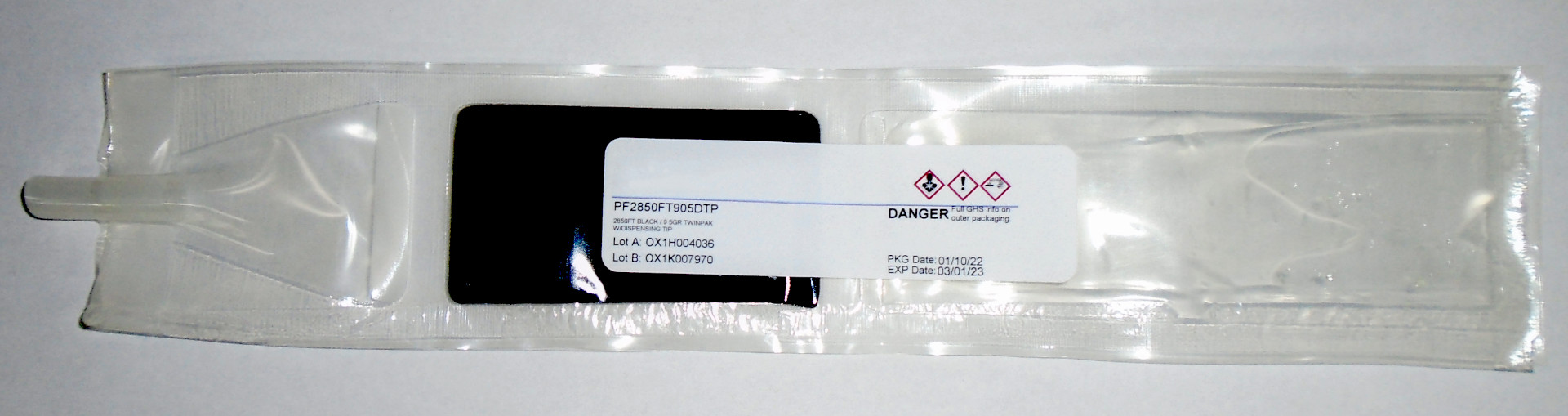

Single use 5-gram Burstable Twinpaks of Stycast 2850FT/Catalyst 9 with dispense tip.

STYCAST 2850 FT is a two component, thermally conductive epoxy encapsulant that can be used with a variety of catalysts. It features a low coefficient of thermal expansion and excellent electrical insulative properties. The STYCAST 2850 FT Blue is recommended for use in high voltage applications where surface arcing or tracking is a concern. Designed for encapsulation of components which need heat dissipation and thermal shock properties. Catalyst 9 for general purpose with good chemical resistance and physical strength with a viscosity Pa.s cP of 0.080 to 0.105 and 80 to 105.

Burstable TwinPaks feature a frangible (burstable) seal that separates the two components until you are ready to use. Applying deliberate pressure will cause the seal to break or burst, allowing the components to mix together with dispensing tip.

Key Features and Benefits

Thermal Conductivity
Low coefficient of thermal expansion
Dissipation of heat from embedded components
Low stress on embedded components

Out of stock

Additional information

Weight	0.03125 lbs
Dimensions	9 × 7 × 5 in
Chemical Composition (%)	Cu: 94.8, Other: Sn 5.0, P 0.2
Density (LB/CU IN)	0.320
Electrical Conductivity (%IACS @68°F)	15
Resistivity (OHMS-CIRC. ML/FT)	69.1
Approximate Melting Point (°F)	1750
Tensile Strength (KPSI)	Hard:110, Soft: 51
Yield Strength (KPSI)	Hard: 85, Soft: 21
Elongation (%)	Hard: 5, Soft: 49
Hardness	Test Method: ASTM-D-2240, (Value) Unit: Shore D, Catalyst 9: 96
Flexural Strength	Test Method: ASTM-D-790. (Value) Unit: mPa, psi Catalyst 9: 92, 13,300
Compressive Strength	Test Method: ASTM-D-695, (Value) Unit: mPa psi, Catalyst 9: 155 22,500
Linear Shrinkage	Test Method: ASTM-D-2566, (Value) Unit: cm/cm, Catalyst 9: 0.002
Water Absorption (24 hours)	Test Method: ASTM-D-570, (Value) Unit: %, Catalyst 9: 0.03
Coefficient of Thermal Expansion, 1, 2	Test Method: ASTM-D-3386, (Value) Unit: 10-6/C 10-6/C, Catalyst 9: 35.0 98.9
Glass Transition Temperature	Test Method: ASTM-D-3418, (Value) Unit: °C, Catalyst 9: 86
Thermal Conductivity	Test Method: ASTM-D-2214, (Value) Unit: W/m.K Btu-in/hr-ft2-°F, Catalyst 9: 1.25 8.7
Temperature Range of Use	Test Method: , (Value) Unit: °C, Catalyst 9: -40 to +130
Outgassing(1) TML CVCM	Test Method: ASTM-E-595, (Value) Unit: % %, Catalyst 9: 0.25 0.01
Dielectric Strength	Test Method: ASTM-D-149, (Value) Unit: kV/mm V/mil, Catalyst 9: 14.4 365
Dielectric Constant @ 1 mHz	Test Method: ASTM-D-150, (Value) Unit: –, Catalyst 9: 5.01
Dissipation Factor @ 1 mHz	Test Method: ASTM-D-150, (Value) Unit: –, Catalyst 9: 0.028
Volume Resistivity @ 25°C	Test Method: ASTM-D-257, (Value) Unit: Ohm-cm, Catalyst 9: >1015
Cure Schedule:	25C: 16-24 hr, 45C: 4-6 hr, 65C: 1-2 hr
